Lift Spare Parts GB/CE Instantaneous Safety Gear Width Of Guide Rails 15.88/16mm

Lift Spare Parts GB/CE Instantaneous Safety Gear Width Of Guide Rails 15.88/16mm

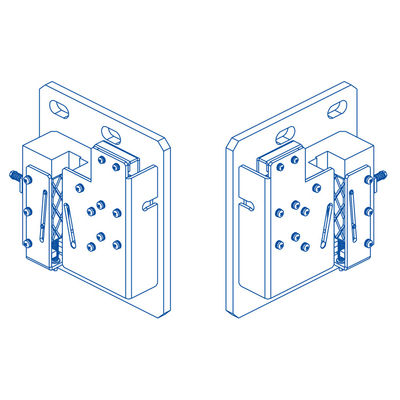

Duży Obraz :  Lift Spare Parts GB/CE Instantaneous Safety Gear Width Of Guide Rails 15.88/16mm

Szczegóły Produktu:
Miejsce pochodzenia: CHINY
Nazwa handlowa: SUNNY
Orzecznictwo: CE,ISO9001
Numer modelu: SN-SG-QS12
Zapłata:
Minimalne zamówienie: 1 zestaw
Cena: $50
Szczegóły pakowania: Drewniane pudełko
Czas dostawy: 7 ~ 15 dni
Zasady płatności: L/C, T/T, Western Union
Możliwość Supply: 10000 sztuk/miesiąc
Szczegółowy opis produktu
nazwa: Natychmiastowe wyposażenie bezpieczeństwa Szerokość prowadnic: 15,88/16 mm
P+P: ≤15000 kg Prędkość znamionowa: ≤0,63 m/s
Odpowiedni: Części windy Rodzaj działalności: Producent
Czas gwarancji: 12 miesięcy Uszczelka: Zapakowany w karton
Model: Natychmiastowe wyposażenie bezpieczeństwa Typ: Natychmiastowe wyposażenie bezpieczeństwa



Lift Spare Parts GB/CE Instantaneous Safety Gear Width Of Guide Rails 15.88/16mm



Parameter Table





Product Model

Rated Speed

(m/s)

Acting Speed of Governor

(m/s)

System Quality

Permitted P+Q

(kg)

Rail Width

(mm)

Certification Rail Status

Dimensions

(Fixed Installation) mm

Input Power

SN-SG-QS12 ≤0.63 ≤0.8 ≤15000 15.88/16 GB/CE Dry/Lubricated 200/420/187
SN-SG-QS12A ≤0.63 ≤0.8 ≤19000 19 GB Dry/Lubricated 260/400/202



Lift Spare Parts GB/CE Instantaneous Safety Gear Width Of Guide Rails 15.88/16mm 0





Lift Spare Parts GB/CE Instantaneous Safety Gear Width Of Guide Rails 15.88/16mm 1



Lift Spare Parts GB/CE Instantaneous Safety Gear Width Of Guide Rails 15.88/16mm 2



Lift Spare Parts GB/CE Instantaneous Safety Gear Width Of Guide Rails 15.88/16mm 3



Lift Spare Parts GB/CE Instantaneous Safety Gear Width Of Guide Rails 15.88/16mm 4



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
