1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

Orzecznictwo
Chiny SHANGHAI SUNNY ELEVATOR CO.,LTD Certyfikaty
Chiny SHANGHAI SUNNY ELEVATOR CO.,LTD Certyfikaty
Życzę, aby wraz z nadejściem nowego roku firma poszerzała swoją skalę, rozwijała biznes, rozwijała biznes i poszerzała zasoby finansowe.

—— Melya

Nacisk na zarządzanie jakością produktów, budowanie długoterminowego skutecznego mechanizmu jakości.

—— Yuilly

Im Online Czat teraz

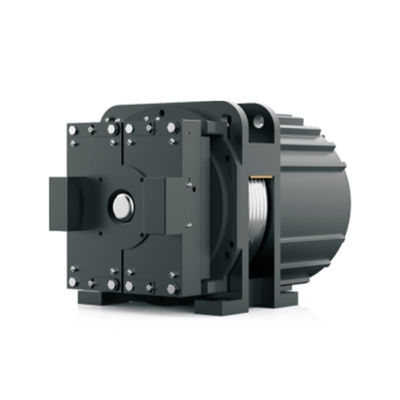

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

Duży Obraz :  1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

Szczegóły Produktu:
Miejsce pochodzenia: CHINY
Nazwa handlowa: SUNNY
Orzecznictwo: CE
Numer modelu: SN-GETM2.5DS
Zapłata:
Minimalne zamówienie: 1
Cena: $500~1200
Szczegóły pakowania: Drewniane pudełko
Czas dostawy: 7 ~ 15 dni
Zasady płatności: Western Union, T/T, akredytywy, Paypal
Możliwość Supply: 5000 szt./miesiąc
Szczegółowy opis produktu
Obciążenie statyczne: 3000 kg Klasa INS: 155(F)
Hamulec obj: DC110V Częstotliwość: 50 Hz
wiązanie: 2: 1 Nazwa produktu: Winda bez przekładni
Model: Winda bez przekładni Typ: Winda bez przekładni
Obciążenie: 630 kg Prędkość: 1,0 ~ 1,75 m/s
Podkreślić:

gearless elevator motor

,

1.0~1.75m/s elevator motor

,

elevator spare parts motor

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

Product Parameters



Roping

Load

(kg)



Speed

(m/s)



Rated speed(r/min) Rated Torque(N.m) Motor Sheave Brake

Power

(kw)

Voltage(V) Current(A) Poles

Frequency

(Hz)

Diameter(mm) Rope(n) Groove pitch(mm) Current(A) Voltage(V)
2:1 630 1 119 329 4.1 340 10 20 19.8 320 ≤5x∅8 12 ≤2x1.5 DC 110V
1.5 179 337 6.3 15 29.8
1.75 209 337 7.4 17 34.8





1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 0

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 1

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 21.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 31.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 4
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
